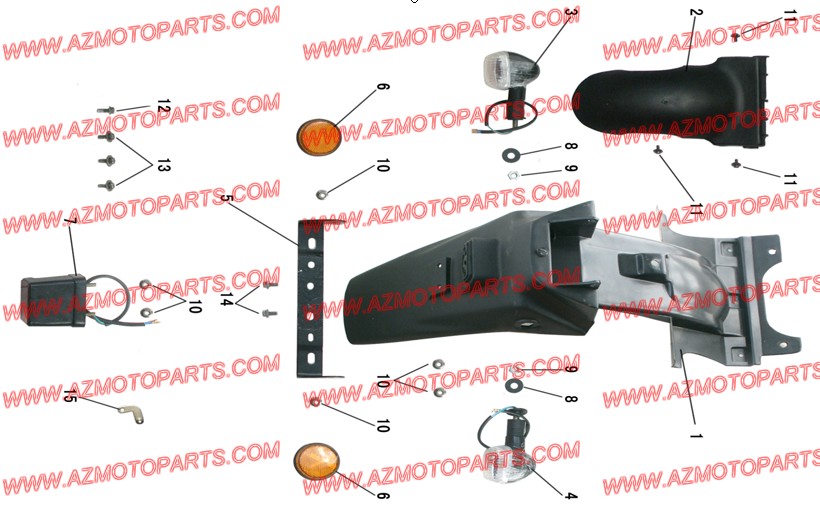

11. REAR FENDER ASSY

NO.	Model Nr	Part  Name	QTY
1	125T-01-REFA-001	REAR FENDER A	1
2	125T-01-REFA-002	REAR FENDER B	1
3	125T-01-REFA-003	L. TURNING LIGHT	1
4	125T-01-REFA-004	R. TURNING LIGHT	1
5	125T-01-REFA-005	BRACKET	1
6	125T-01-REFA-006	REFLECTOR(YELLOW)	1
7	125T-01-REFA-007	LICENSE LIGHT	1
8	125T-01-REFA-008	WASHER	2
9	125T-01-REFA-009	NUT 6	2
10	125T-01-REFA-010	NUT 6	6
11	125T-01-REFA-011	SCREW 6?2	3
12	125T-01-REFA-012	BOLT 6?6	1
13	125T-01-REFA-013	BOLT 6?6	3
14	125T-01-REFA-014	BOLT 6?2	2
15	125T-01-REFA-015	CONNECT PLATE	3
