Front Shock, Steering Subassembly
11. Front Shock, Steering Subassembly
|
No |
Model Nr |
Part Name |
QTY |
|
01 |
150T01-FSSS-01 |
FORK STEM |
1 |
|
02 |
150T01-FSSS-02 |
LEFT LOWER PIPE |
1 |
|
03 |
150T01-FSSS-03 |
RIGHT LOWER PIPE |
1 |
|
04 |
150T01-FSSS-04 |
CENTER PLUG |
2 |
|
05 |
150T01-FSSS-05 |
TUBE, inner |
2 |
|
06 |
150T01-FSSS-06 |
OIL SEAL |
2 |
|
07 |
150T01-FSSS-07 |
RING, oil seal stopper |
2 |
|
08 |
150T01-FSSS-08 |
INNER PIPE |
2 |
|
09 |
150T01-FSSS-09 |
PISTON RING |
2 |
|
10 |
150T01-FSSS-10 |
SPRING |
2 |
|
11 |
150T01-FSSS-11 |
OIL SEAL |
2 |
|
12 |
150T01-FSSS-12 |
BOLT FLANGE |
4 |
|
14 |
150T01-FSSS-14 |
PIECE, oil lock |
2 |
|
15 |
150T01-FSSS-15 |
LOWER RACK |
1 |
|
16 |
150T01-FSSS-16 |
STEERING BALL RACE, lower, inner |
1 |
|
17 |
150T01-FSSS-17 |
STEERING BALL RACE, upper, inner |
1 |
|
18 |
150T01-FSSS-18 |
SCREW |
2 |
|
19 |
150T01-FSSS-19 |
BALLS |
1 |
|
20 |
150T01-FSSS-20 |
STEERING BALL RACE, upper, outer |
1 |
|
21 |
150T01-FSSS-21 |
STEERING, STEM BALL RACE |
1 |
|
22 |
150T01-FSSS-22 |
SPRING |
2 |
|
23 |
150T01-FSSS-23 |
CLAMP |
1 |
|
24 |
150T01-FSSS-24 |
BOLT FLANGE |
1 |
|
25 |
150T01-FSSS-25 |
NUT |
1 |
|
26 |
150T01-FSSS-26 |
O RING |
2 |

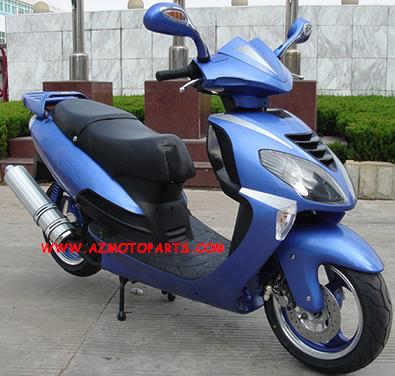

Click here or click following photo for this model more parts.
|
