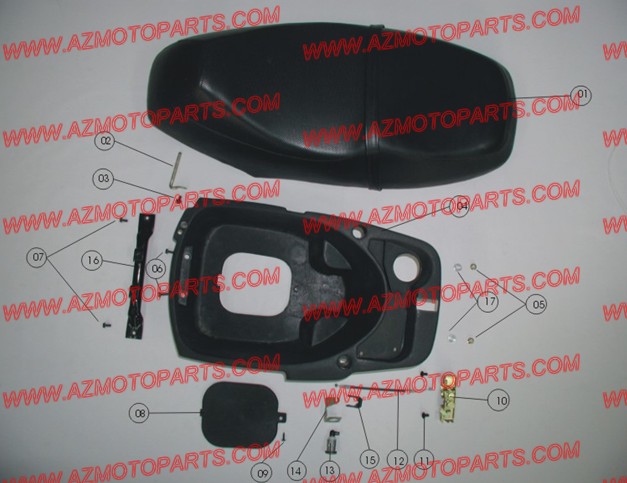

Seat Subassembly
13. Seat Subassembly
|
No |
Model Nr |
Part Name |
QTY |
|
01 |
150T01-SESU-01 |
SEAT. ASSY |
1 |
|
02 |
150T01-SESU-02 |
CONNECT ROD |
1 |
|
03 |
150T01-SESU-03 |
BOLT FLANGE |
1 |
|
04 |
150T01-SESU-04 |
BOX ASSY LUGGAGE |
1 |
|
05 |
150T01-SESU-05 |
NUT FLANGE |
2 |
|
06 |
150T01-SESU-06 |
BOLT FLANGE |
2 |
|
07 |
150T01-SESU-07 |
BOLT FLANGE |
2 |
|
08 |
150T01-SESU-08 |
COVER |
1 |
|
09 |
150T01-SESU-09 |
TAPPING SCREW |
1 |
|
10 |
150T01-SESU-10 |
LOCK,seat |
1 |
|
11 |
150T01-SESU-11 |
BOLT FLANGE |
2 |
|
12 |
150T01-SESU-12 |
CABLE,seat lock |
1 |
|
13 |
150T01-SESU-13 |
LOCK SET, seat |
1 |
|
14 |
150T01-SESU-14 |
STATER LOCK |
1 |
|
15 |
150T01-SESU-15 |
CIRCLIP,seat lock |
1 |
|
16 |
150T01-SESU-16 |
BRACKET |
1 |
|
17 |
150T01-SESU-17 |
WASHER 6 |
2 |
Click here or click following photo for this model more parts.
|
|
