Rear Wheel Subassembly

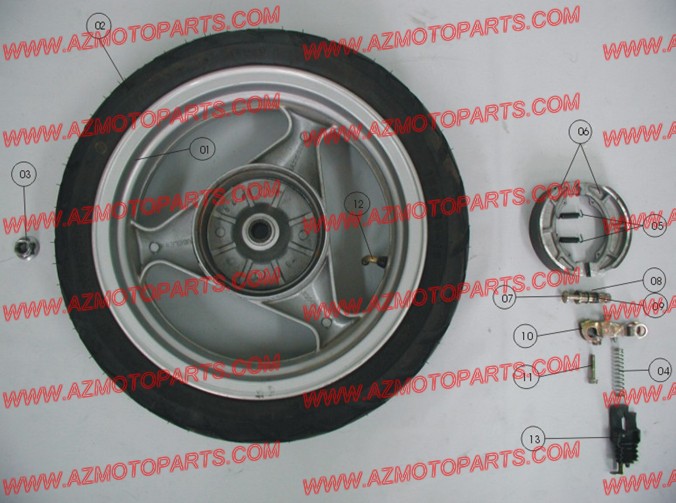

15. Rear Wheel Subassembly
|
No |
Model Nr |
Part Name |
QTY |
|
01 |
150T01-RWSU-01 |
RIM COMP, wheel |
1 |
|
02 |
150T01-RWSU-02 |
TIRE, rear |
1 |
|
03 |
150T01-RWSU-03 |
NUT FLANGE |
1 |
|
04 |
150T01-RWSU-04 |
SPRING |
1 |
|
05 |
150T01-RWSU-05 |
SPRING, break shoe |
2 |
|
06 |
150T01-RWSU-06 |
SHOE, rear brake |
2 |
|
07 |
150T01-RWSU-07 |
CAM, brake |
1 |
|
08 |
150T01-RWSU-08 |
WASHER? |
1 |
|
09 |
150T01-RWSU-09 |
WASHER? |
1 |
|
10 |
150T01-RWSU-10 |
LEVER, rear brake cam |
1 |
|
11 |
150T01-RWSU-11 |
BOLT HEX |
1 |
|
12 |
150T01-RWSU-12 |
VALVE ASSY, wheel rim |
1 |
|
13 |
150T01-RWSU-13 |
BOOT |
1 |
