Pedal Board Subassembly

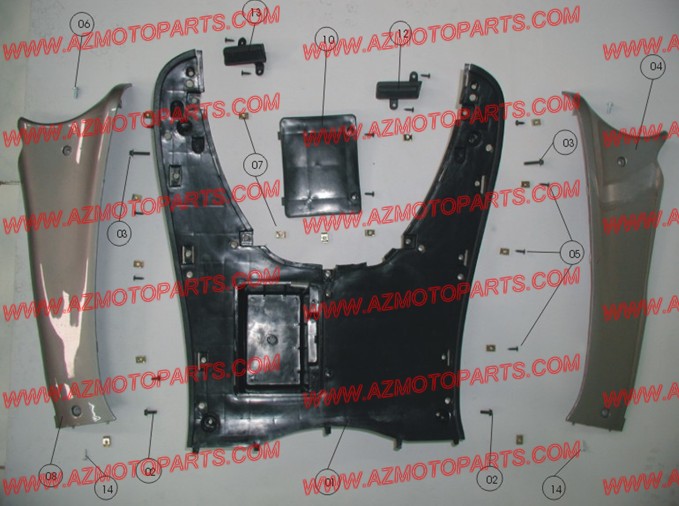

17. Pedal Board Subassembly
|
No |
Model Nr |
Part Name |
QTY |
|
01 |
150T01-PEBS-01 |
COMP,FLOOR |
1 |
|
02 |
150T01-PEBS-02 |
BOLT FLANGE |
2 |
|
03 |
150T01-PEBS-03 |
BOLT FLANGE |
2 |
|
04 |
150T01-PEBS-04 |
COVER,SIDE LEFT |
1 |
|
05 |
150T01-PEBS-05 |
TAPPING SCREW |
14 |
|
06 |
150T01-PEBS-06 |
BOLT |
2 |
|
07 |
150T01-PEBS-07 |
NUT,circlip |
15 |
|
08 |
150T01-PEBS-08 |
COVER,SIDE RIGHT |
1 |
|
10 |
150T01-PEBS-10 |
COVER BATTERY |
1 |
|
12 |
150T01-PEBS-12 |
PILLION FOOTREST(L) |
1 |
|
13 |
150T01-PEBS-13 |
PILLION FOOTREST(R) |
1 |
|
14 |
150T01-PEBS-14 |
TAPPING SCREW |
2 |
